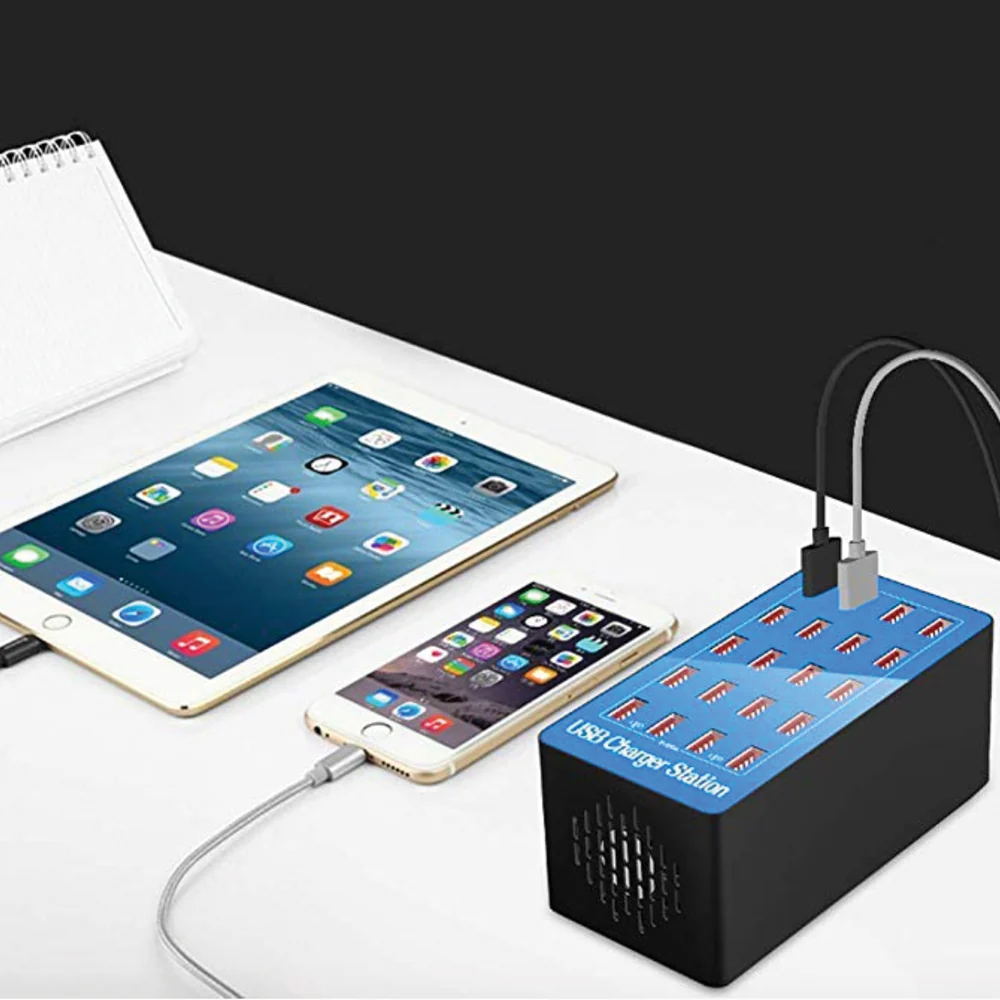

CHR-10 | USB Charging Station 20 Ports / 45 Ports / 60 Ports

• Adopt Latest USB controller technology, built-in smart IC tech that can identify your devices and delivers full speed charging.
• PCBA with over heat, over current and over load protection.
• Automatically recognizes the current signal and performs current output according to the device limitation, intelligent and safe.
• Each interface has independent chip, effectively prevent the mutual interference between each port, ensure the safety of charging equipment.
• Compatible with most smart devices, such as mobile phones, tablets, desk lamps, fans, DV, PSP. Suitable for all kinds of occasions, such as hotels, school dormitories, stations, etc.

MODEL NO: CHR-MT20
NUMBER OF USB: 20 PORTS
INPUT: AC100-250V 50~60HZ
DIMENSIONS: 140 x 70 x 63 MM
OUTPUT: EACH USB PORTS: 5V / 1A ~ 2.4A
No of device charging at the same time:
Current 1.0A = 20 devices
Current 1.5A = 14 devices
Current 2.0A = 10 devices

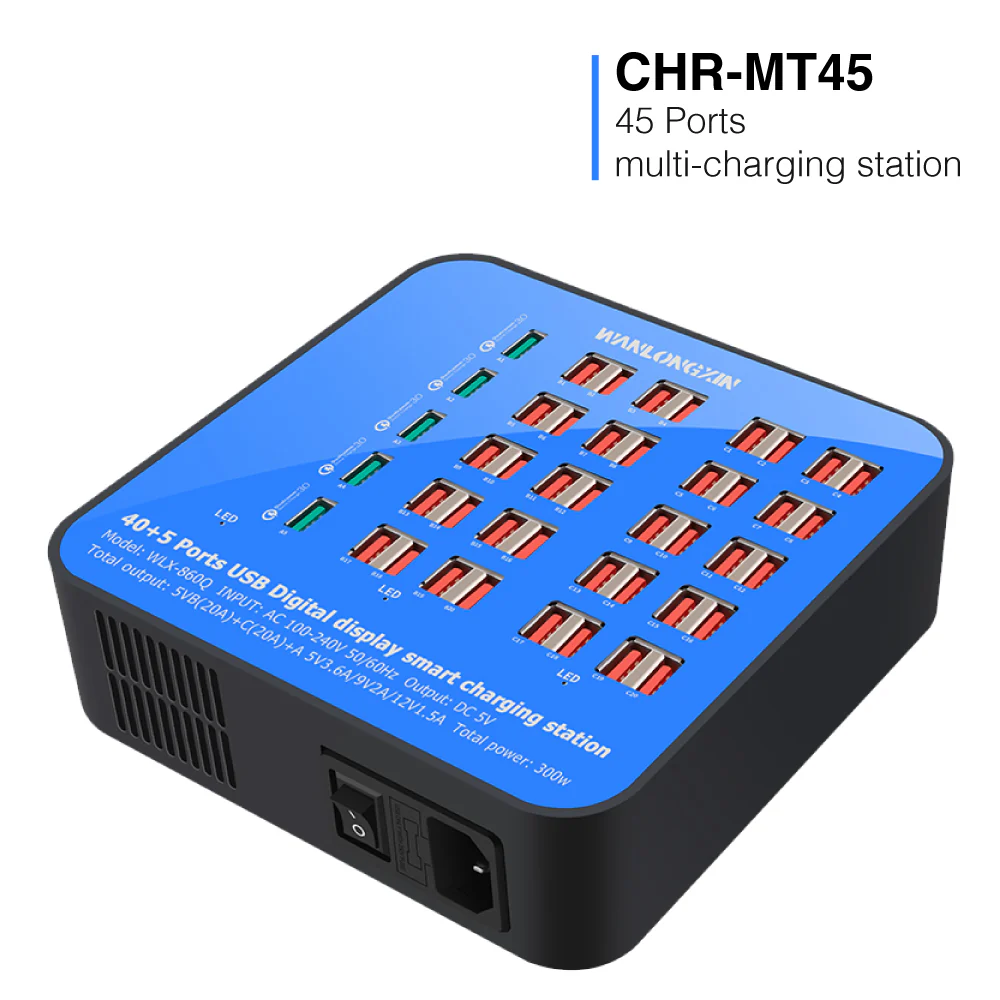

MODEL NO: CHR-MT45
NUMBER OF USB: 45 PORTS
INPUT: AC100-250V 50~60HZ
DIMENSIONS: 165 x 165 x 48 mm
OUTPUT: USB PORTS: 5V / 1A ~ 2.4A QC 3.0 PORTS OUTPUT: 5V 9V 12V / 3.0A 2.0A 1.5A
No of device charging at the same time:
Current 1.0A = 40 devices + 5 QC 3.0 devices = 45 devices
Current 1.5A = 28 devices + 5 QC 3.0 devices = 33 devices
Current 2.0A = 20 devices + 5 QC 3.0 devices = 25 devices

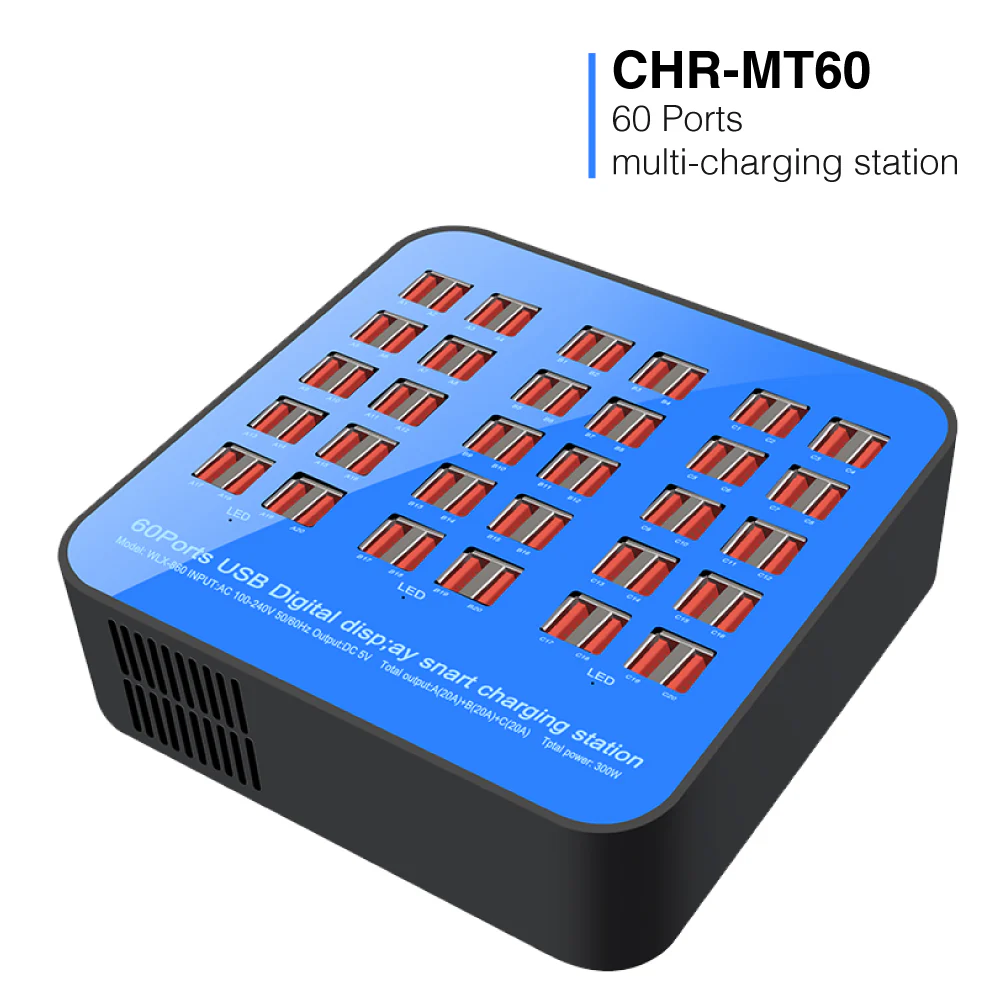

MODEL NO: CHR-MT60
NUMBER OF USB: 60 PORTS
INPUT: AC100-250V 50~60HZ
DIMENSIONS: 165 x 165 x 48 mm
OUTPUT: USB PORTS: 5V / 1A ~ 2.4A
No of device charging at the same time:
Current 1.0A = 60 devices
Current 1.5A = 42 devices
Current 2.0A = 30 devices
